Description

Description

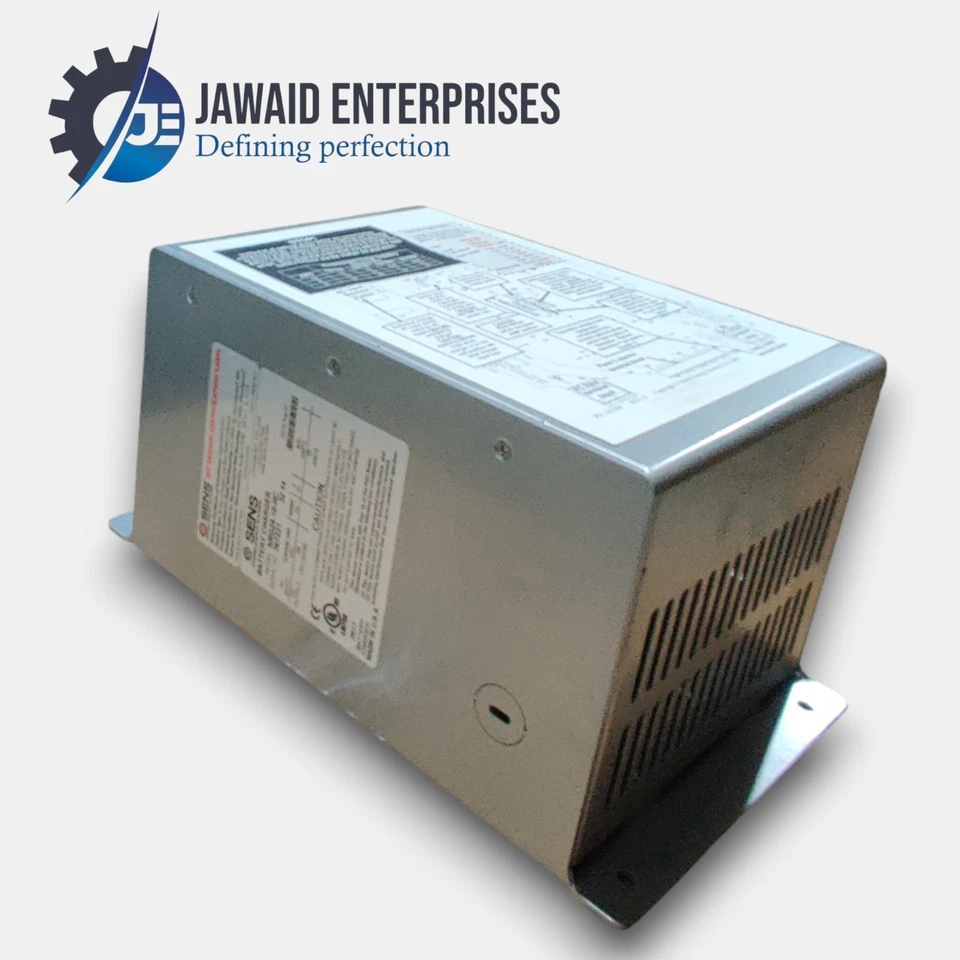

The SENS NRG24‑10‑HC Intelligent Battery Charger is a rugged, high‑reliability engine‑start battery charger designed for 24V lead‑acid and nickel‑cadmium batteries used in gensets, heavy‑duty equipment, and standby power systems. Developed with SENS’s EnerGenius® technology, this charger automatically adjusts its output to match battery requirements, extending battery life and optimizing start‑up performance. It features temperature compensation, multiple charging rates, built‑in alarms, and field‑adaptable configuration for flexible installation and reliable service in demanding environments.

Key Features

Smart Intelligent Charging: Automatically adapts output to changing battery needs for max performance and life.

Field Adaptable: Easily configures for 12 V or 24 V systems and multiple input voltages (120/208‑240 VAC).

4‑Rate Automatic Charging: Provides constant voltage with multi‑stage charging for efficient recharge cycles.

Temperature Compensation: Adjusts charge based on ambient temperature to prevent over/under charging.

Battery Fault Alarm: Detects battery issues like high resistance or open cells before they affect starting.

Rugged Construction: Durable aluminum housing built to withstand harsh industrial conditions.

Compliance & Certifications: Meets UL, C‑UL and CE standards; seismically certified to IBC.

Specifications

Part Number: NRG24‑10‑HC
Type: Intelligent Battery Charger (Genset / Engine Start)
Brand: SENS
Voltage Input: 120/208‑240 VAC, single‑phase (50/60 Hz)
Output Voltage: 24 VDC nominal (field adaptable)
Nominal Output Current: 10 A
Charging Method: 4‑rate automatic constant‑voltage, current‑limited
Temperature Compensation: Yes (built‑in / optional remote sensor)
Battery Compatibility: Lead‑acid & Nickel‑cadmium batteries
Alarms & Indicators: LED status and fault contacts
Housing: Non‑corroding aluminum
Certifications: UL / C‑UL / CE (IEC compliance), IBC seismic certified
Weight: ~30 lbs / ~13.6 kg (approx. shipping)
Application: Genset engine start, standby power systems
